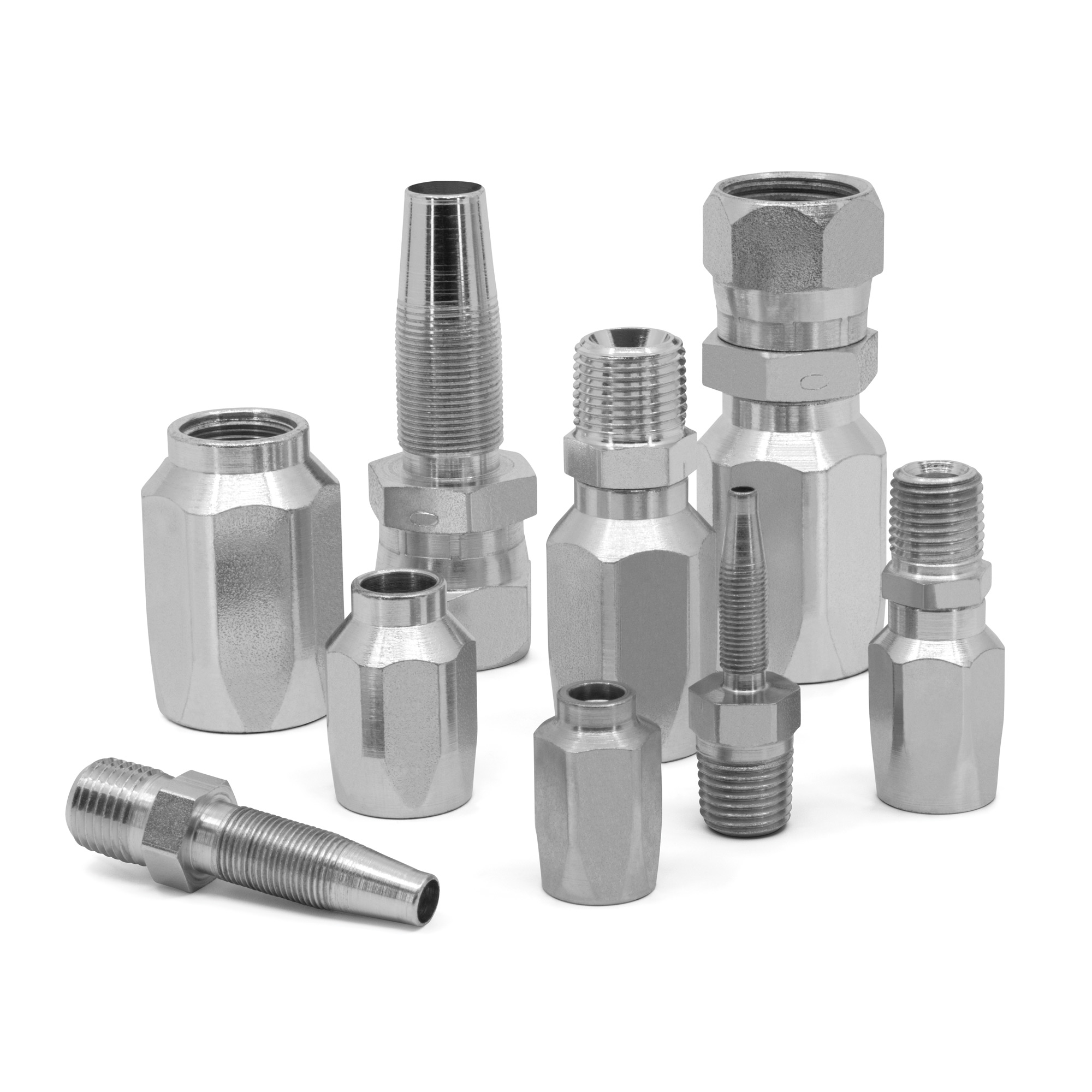

Precision-engineered hydraulic fittings integrate seamlessly with your existing systems, reducing installation time and minimizing production delays. Contact Kurt's expert team for wholesale orders or to find a distributor.
No crimping is required—assembly only requires wrenches. Fittings meet SAE specifications when assembled with the correct hose model and hose size along with the correct reusable fitting.

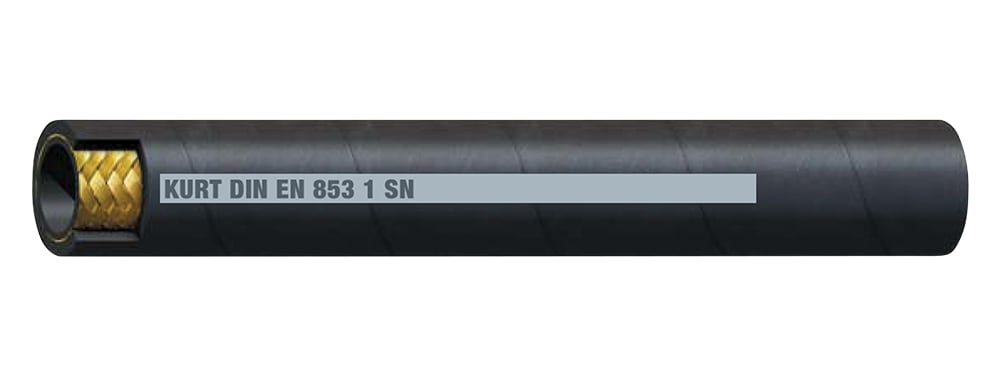

Kurt SAE R1SN one-wire braided hydraulic hoses work with -R1R reusable fittings.
Recommended for: Medium pressure hydraulic oil lines
Tube: Oil resistant synthetic rubber
Reinforcement: One high tensile steel wire braid
Cover: Abrasion, ozone and weather resistant synthetic rubber
Meets flame resistant MSHA designation
Temperature Range: -40° to +212°F (+250°F Max)

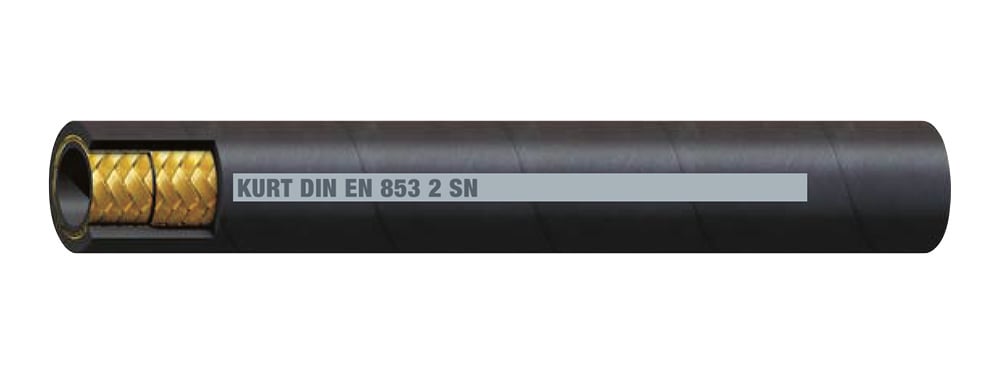

Kurt SAE R2SN two-wire braided hydraulic hoses work with -R2R reusable fittings.
Recommeded for: High pressure hydraulic oil lines
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braid
Cover: Abraison, ozone and weather resistant synthetic rubber
Meets flame resistant MSHA designation
Temperature Range: -40°F to +212°F (+250°F Max)
